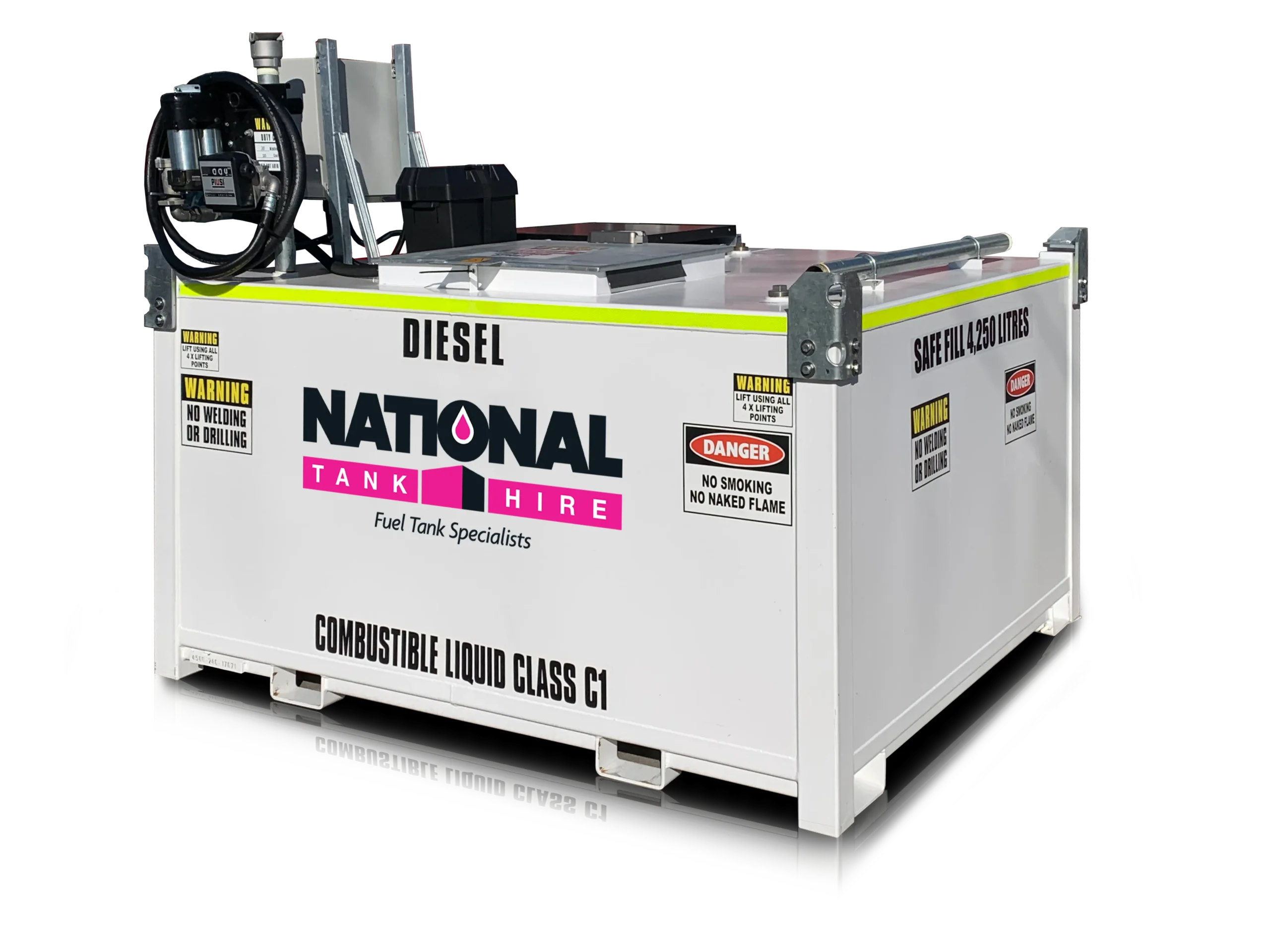

Self-Bunded Fuel Storage Cubes

Self-Bunded Fuel Storage Cubes

Stackable Design | 1,100L - 13,000L

Maximise your fuel storage efficiency with our innovative self-bunded fuel storage cubes, featuring unique stackable design and 110% bunded capacity for superior environmental protection. These UN-approved, fully baffled tanks are perfect for site storage, fuel delivery, decanting, and safe transport across mining, construction, and industrial applications.

Constructed with heavy-duty mild steel and meeting AS1940, AS1692, UL142, and UN31AY standards, our storage cubes offer unparalleled versatility with secure lockable access, removable manway for maintenance, and space-saving stackability up to three units high when empty.

Self-bunded and fully baffled
Built for safe transport and static use, ideal for diesel, petrol (ULP), lubricants, kerosene, and waste oil.

Mild steel construction
Heavy-duty mild steel internal tank with durable external bund.

Secure, stackable design
Stack up to three high when empty or two when full for space-saving storage and transport.

Approved for dangerous goods
Meets AS1940 and AS1692 standards for transport and static fuel storage.

110% bunded capacity
Bund holds more than the full internal tank volume for added protection.

Easy maintenance
Includes removable manway and carbon steel inner tank for cleaning and servicing.

Lockable hatch lid
Allows access for hoses, sockets and suction spears, even while the hatch is closed.

Ideal for
Site storage, fuel delivery, decanting, and safe transport of fuel or waste liquids across a wide range of industries.

UN Approved
Certified under UN31AY for the safe transport of dangerous goods by road, rail and sea (Packaging Groups II & III).

True Self-Bunded Protection
Built with high-grade mild steel inside and out, the inner tank holds the fuel while the outer tank acts as a protective bund, preventing leaks from reaching the environment.

110% Bunded Capacity
Exceeds compliance by holding 110% of the inner tank’s volume, with all seams fully welded.

Wide Range of Sizes
Available in sizes from 1,100L to 13,000L, including 1,100L, 2,200L, 3,300L, 4,500L, 6,300L & 13,000L.

Meets Australian & Global Standards
Compliant with AS1692, AS1940, UL142, ULC-S601, ULS-s603, BS799 and UN31AY. Also PPG2 and EU approved.

Secure Lockable Bund
All pumps, hoses and connections are contained and lockable inside the bund, even while in use.

Space-Saving Stackability
Stack up to three high when empty or two high when full, ideal for compact storage and transport.

Fully Baffled
Designed to minimise fluid movement, making it safer to transport and use across worksites.

Code: C1

Capacity: 1,100L
Safe Fill Level: 1,000L
Weight: 680 Kg
Length: 1,577 mm
Width: 1,130 mm
Height: 1,235 mm

Code: C2

Capacity: 2,000L
Safe Fill Level: 1,800L
Weight: 980 Kg
Length: 2,550 mm
Width: 1,130 mm
Height: 1,235 mm

Code: C3

Capacity: 3,000L
Safe Fill Level: 2,700L
Weight: 1,139 Kg
Length: 3,630 mm
Width: 1,130 mm
Height: 1,235 mm

Code: C4.5

Capacity: 4,500L
Safe Fill Level: 4,100L
Weight: 1,650 Kg
Length: 3,000 mm
Width: 2,000 mm
Height: 1,235 mm

Code: C6.3

Capacity: 6,300L
Safe Fill Level: 5,950L
Weight: 2,450 Kg
Length: 3,560 mm
Width: 2,166 mm
Height: 1,235 mm

Code: C13

Capacity: 13,000L
Safe Fill Level: 12,000L
Weight: 4,500 Kg
Length: 6,000 mm
Width: 2,400 mm
Height: 1,300 mm

Data Sheets coming soon.

Enquire Today

Get in touch with our team

Call 1300 4 TANK HIRE

Whether it’s urgent or upcoming, we’re here to help. Get in touch with our team to discuss your project and we’ll get the right solution sorted.

ADDRESS
83-89 Westgate Drive, Altona North Vic 3025

EMAIL
[email protected]
Facebook Instagram Linkedin Youtube

"*" indicates required fields

Name*

Frequently Asked Questions

Our fuel storage cubes range from 1,100L to 13,000L, including specific sizes: 1,100L (C1), 2,200L (C2), 3,300L (C3), 4,500L (C4.5), 6,300L (C6.3), and 13,000L (C13).

Storage cubes can be stacked up to three high when empty or two high when full, providing excellent space-saving storage and transport solutions.

The external bund holds 110% of the internal tank’s volume, exceeding compliance requirements and providing superior environmental protection against potential leaks.

Yes, all storage cubes are UN31AY certified for safe transport of dangerous goods (Packaging Groups II & III) by road, rail, and sea.

Each cube features a removable manway and carbon steel inner tank design for easy cleaning, servicing, and maintenance access.

Yes, the lockable hatch lid allows access for hoses, sockets, and suction spears while maintaining security, with all connections contained within the protective bund.
